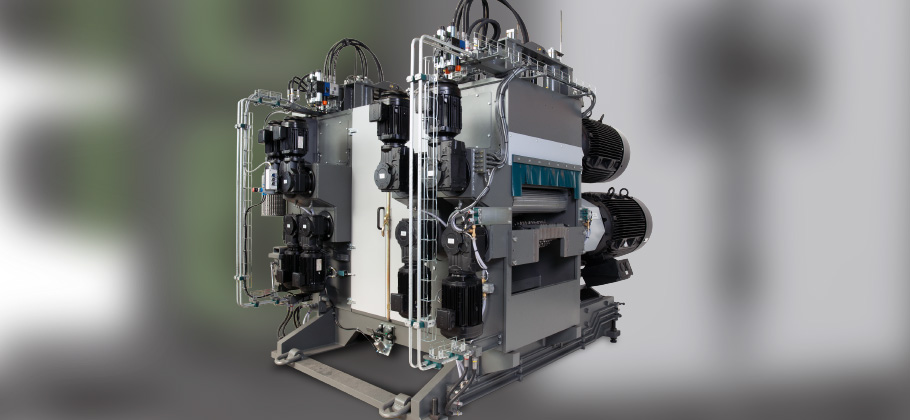

NKV 300

Flexibility through movable flanges

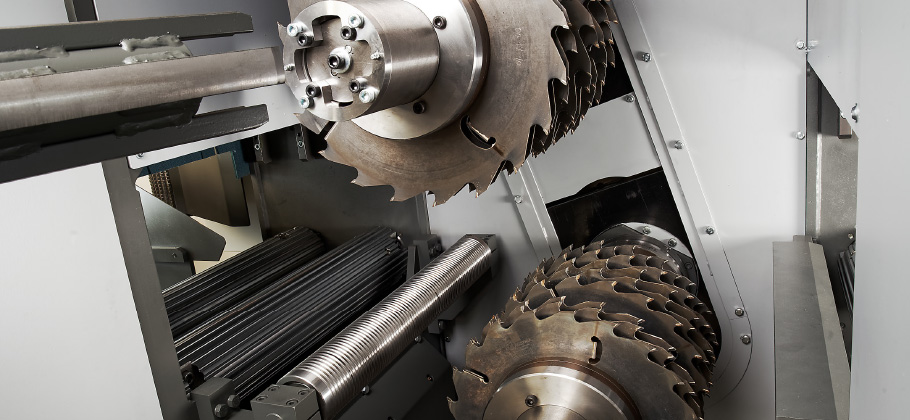

Single arbor cut

Using the combined single arbor cut, production can be made with flanges positioned
towards one another on the upper and lower side (fixed and movable) and arbor
independent blade adjustment.

The number of horizontal and vertical cuts can get changed by two products. In
addition to the fixed dimensions two cuts of variable thicknesses from 18 to 120mm
can be created.

Double arbor cut

In the double arbor cut (the upper and lower arbor are in the same saw kerf) fixed
and movable flanges are synchronously adjusted.

This allows the change of the number of the main products by one product. This cut
can vary in width from 18 to 120mm.
